# must be unique in a given SonarQube instance
sonar.projectKey=gs
# this is the name displayed in the SonarQube UI
sonar.projectName= gs
#sonar.language=java
sonar.projectVersion=1.0

# Path is relative to the sonar-project.properties file. Replace "\" by "/" on Windows.
# Since SonarQube 4.2, this property is optional if sonar.modules is set.
# If not set, SonarQube starts looking for source code from the directory containing
# the sonar-project.properties file.
sonar.sources=.
#sonar.binaries=C:/Users/Administrator/Desktop/codes/web/yyxw/WebRoot/WEB-INF/classes/com
sonar.java.binaries=项目class文件
# Encoding of the source code. Default is default system encoding
sonar.sourceEncoding=UTF-8

#Set jacoco Configuration
#Code coverage tool
sonar.java.coveragePlugin=jacoco
#Path to the JaCoCo report file containing coverage data by unit tests. The path may be absolute or relative to the project base directory
sonar.jacoco.reportPath=项目路径/jacoco.exec
#Path to the JaCoCo report file containing coverage data by integration tests. The path may be absolute or relative to the project base directory
sonar.jacoco.itReportPath=项目路径/jacoco.exec
#sonar.jacoco.reportMissing.force.zero
sonar.jacoco.reportMissing.force.zero=false

android {
    ...
    defaultConfig {
         ...
        testInstrumentationRunnerArguments clearPackageData: ''true''
//        执行instrumentation测试时清除缓存
    }
    buildTypes {
        debug {
            testCoverageEnabled = true
            /**打开覆盖率统计开关
             */
        }
    }

Executing tasks: [createDebugAndroidTestCoverageReport]
...
> Task :app:connectedDebugAndroidTest
...
05:40:39 V/ddms: execute: running am instrument -w -r   -e coverageFile /data/data/com.patech.testApp/coverage.ec -e coverage true -e clearPackageData true com.patech.testApp.test/androidx.test.runner.AndroidJUnitRunner
...
05:40:41 V/InstrumentationResultParser: com.patech.testApp.EspressoTest:
...
05:40:58 V/InstrumentationResultParser: Time: 17.669
05:40:58 V/InstrumentationResultParser:
05:40:58 V/InstrumentationResultParser: OK (5 tests)
05:40:58 V/InstrumentationResultParser:
05:40:58 V/InstrumentationResultParser:
05:40:58 V/InstrumentationResultParser: Generated code coverage data to /data/data/com.patech.testApp/coverage.ec
05:40:58 V/InstrumentationResultParser: INSTRUMENTATION_CODE: -1
...
05:40:59 I/XmlResultReporter: XML test result file generated at D:\androidStudio\MyApplication\app\build\outputs\androidTest-results\connected\TEST-VOG-AL10 - 9-app-.xml. Total tests 5, passed 5,
05:40:59 V/ddms: execute ''am instrument -w -r   -e coverageFile /data/data/com.patech.testApp/coverage.ec -e coverage true -e clearPackageData true com.patech.testApp.test/androidx.test.runner.AndroidJUnitRunner'' on ''APH0219430006864'' : EOF hit. Read: -1
...
05:40:59 D/com.patech.testApp.coverage.ec: Downloading com.patech.testApp.coverage.ec from device ''APH0219430006864''
...

public interface FinishListener {
    void onActivityFinished();
    void dumpIntermediateCoverage(String filePath);
}

package com.patech.test;

import android.app.Activity;
import android.app.Instrumentation;
import android.content.Intent;
import android.os.Bundle;
import android.os.Looper;
import android.util.Log;

import com.patech.testApp.InstrumentedActivity;

import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.OutputStream;
import java.lang.reflect.InvocationTargetException;

public class JacocoInstrumentation extends Instrumentation implements FinishListener{

    public static String TAG = "JacocoInstrumentation:";
    private static String DEFAULT_COVERAGE_FILE_PATH = "/mnt/sdcard/coverage.ec";

    private final Bundle mResults = new Bundle();

    private Intent mIntent;
    //LOGD 调试用布尔
    private static final boolean LOGD = true;

    private boolean mCoverage = true;

    private String mCoverageFilePath;

    public JacocoInstrumentation(){

    }

    @Override
    public void onCreate(Bundle arguments) {
        Log.d(TAG, "onCreate(" + arguments + ")");
        super.onCreate(arguments);
        //DEFAULT_COVERAGE_FILE_PATH = getContext().getFilesDir().getPath() + "/coverage.ec";

        File file = new File(DEFAULT_COVERAGE_FILE_PATH);
        if (!file.exists()) {
            try {
                file.createNewFile();
            }catch (IOException e) {
                Log.d(TAG, "异常 :" + e);
                e.printStackTrace();
            }
        }

        if (arguments != null) {
            mCoverageFilePath = arguments.getString("coverageFile");
        }

        mIntent = new Intent(getTargetContext(), InstrumentedActivity.class);
        mIntent.setFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
        start();
    }

    public void onStart() {
        if (LOGD)
            Log.d(TAG,"onStart()");
        super.onStart();

        Looper.prepare();
/*        InstrumentedActivity activity = (InstrumentedActivity) startActivitySync(mIntent);
        activity.setFinishListener(this);*/
    }

    private boolean getBooleanArgument(Bundle arguments, String tag) {
        String tagString = arguments.getString(tag);
        return tagString != null && Boolean.parseBoolean(tagString);
    }

    private String getCoverageFilePath() {
        if (mCoverageFilePath == null) {
            return DEFAULT_COVERAGE_FILE_PATH;
        }else {
            return mCoverageFilePath;
        }
    }

    private void generateCoverageReport() {
        Log.d(TAG, "generateCoverageReport():" + getCoverageFilePath());
        OutputStream out = null;
        try {
            out = new FileOutputStream(getCoverageFilePath(),false);
            Object agent = Class.forName("org.jacoco.agent.rt.RT")
                    .getMethod("getAgent")
                    .invoke(null);

            out.write((byte[]) agent.getClass().getMethod("getExecutionData",boolean.class)
                    .invoke(agent,false));
        } catch (FileNotFoundException e) {
            Log.d(TAG, e.toString(), e);
        } catch (IOException e) {
            e.printStackTrace();
        } catch (InvocationTargetException e) {
            e.printStackTrace();
        } catch (NoSuchMethodException e) {
            e.printStackTrace();
        } catch (IllegalAccessException e) {
            e.printStackTrace();
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        } finally {
            if (out != null) {
                try {
                    out.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }
    }

    public void UsegenerateCoverageReport() {
        generateCoverageReport();
    }

    private boolean setCoverageFilePath(String filePath){
        if (filePath != null && filePath.length() > 0) {
            mCoverageFilePath = filePath;
        }
        return false;
    }

    private void reportEmmaError(Exception e) {
        reportEmmaError(e);
    }

    private void reportEmmaError(String hint, Exception e) {
        String msg = "Failed to generate emma coverage. " +hint;
        Log.e(TAG, msg, e);
        mResults.putString(Instrumentation.REPORT_KEY_IDENTIFIER,"\nError: " + msg);
    }

    @Override
    public void onActivityFinished() {
        if (LOGD) {
            Log.d(TAG,"onActivityFinished()");
        }
        finish(Activity.RESULT_OK,mResults);
    }

    @Override
    public void dumpIntermediateCoverage(String filePath) {
        if (LOGD) {
            Log.d(TAG,"Intermidate Dump Called with file name :" + filePath);
        }
        if (mCoverage){
            if (!setCoverageFilePath(filePath)) {
                if (LOGD) {
                    Log.d(TAG,"Unable to set the given file path :" +filePath + "as dump target.");
                }
            }
            generateCoverageReport();
            setCoverageFilePath(DEFAULT_COVERAGE_FILE_PATH);
        }
    }
}

<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" /> <!-- Jacoco权限 -->
    <uses-permission android:name="android.permission.USE_CREDENTIALS" />
    <uses-permission android:name="android.permission.GET_ACCOUNTS" />
    <uses-permission android:name="android.permission.READ_PROFILE" />
    <uses-permission android:name="android.permission.READ_CONTACTS" />

    <instrumentation
        android:name="com.patech.test.JacocoInstrumentation"
        android:handleProfiling="true"
        android:label="CoverageInstrumentation"
        android:targetPackage="com.patech.testApp" />

apply plugin: ''jacoco''
//https://docs.gradle.org/current/userguide/jacoco_plugin.html
jacoco {
    toolVersion = "0.8.4"
}
task jacocoTestReport(type: JacocoReport) {
    group = "Reporting"
    description = "Generate Jacoco coverage reports after running tests."
    def debugTree = fileTree(dir: "${buildDir}/intermediates/javac/debug",
//            includes: ["**/*Presenter.*"],
            excludes: [''**/R*.class'',
                       ''**/*$InjectAdapter.class'',
                       ''**/*$ModuleAdapter.class'',
                       ''**/*$ViewInjector*.class''
            ])//指定类文件夹、包含类的规则及排除类的规则，这里我们生成所有Presenter类的测试报告
    def coverageSourceDirs = "${project.projectDir}/src/main/java" //指定源码目录
    def reportDirs="$buildDir/outputs/reports/jacoco/jacocoTestReport"
    reports {
        xml.enabled = true
        html.enabled = true
    }
//    destinationFile=file(reportDirs)
    classDirectories = files(debugTree)
    sourceDirectories = files(coverageSourceDirs)
    executionData = files("$buildDir/outputs/code-coverage/connected/coverage.ec")
}

adb shell am instrument -w -r  com.patech.testApp/com.patech.testcoverage.test.JacocoInstrumentation

adb pull mnt/sdcard/coverage.ec C:\Users\user\Desktop\testReport\jacoco

<?xml version="1.0" encoding="utf-8"?>
<project name="plate_id_sample_service" xmlns:jacoco="antlib:org.jacoco.ant">
    <taskdef uri="antlib:org.jacoco.ant" resource="org/jacoco/ant/antlib.xml">
        <classpath path="F:\apache-tomcat-8.5.29\bin\jacocoant.jar"/>
    </taskdef>

    <target name="dump">
        <!-- address和port和catalina.bat设置保持一致，destfile设置jacoco.exec保存地址 -->
        <jacoco:dump address="127.0.0.1" reset="true" port="6300" destfile="E:\工作\study\jacoco.exec"/>
    </target>

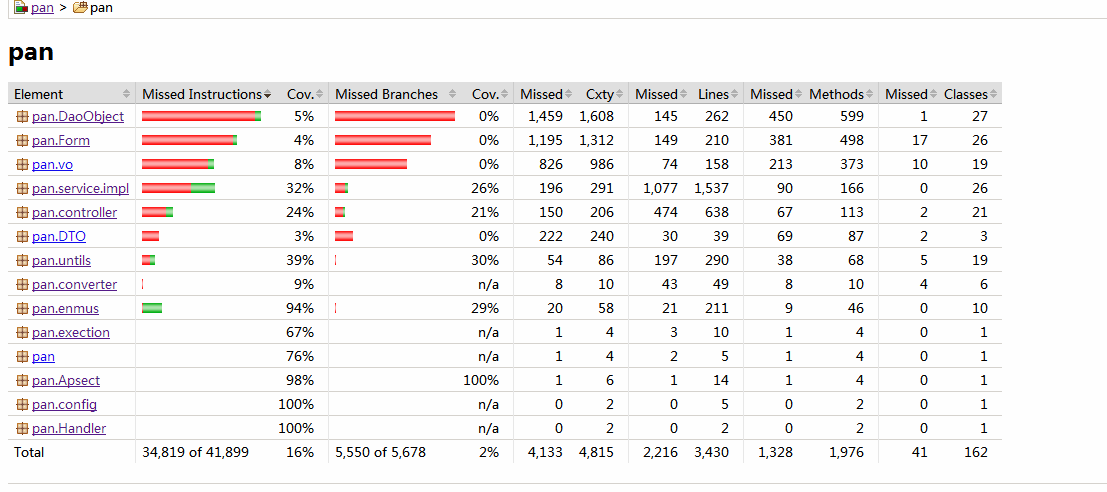

    <target name="report">
        <jacoco:report>
            <executiondata>
                <file file="E:\工作\study\jacoco.exec"/>
            </executiondata>

            <structure name="pan">
                <!-- 可以按软件功能模块设置多个group，方便在report中查看 -->
                <group name="pan">
                    <classfiles>
                        <!--.class文件路径，可以放在客户端-->
                        <fileset dir="F:\apache-tomcat-8.5.29\webapps\plan\WEB-INF\classes"/>
                    </classfiles>
                    <sourcefiles encoding="utf-8">
                        <!--源代码路径，可以放在客户端-->
                        <fileset dir="C:\Users\Administrator\Desktop\plan\src\main\java" />
                    </sourcefiles>
                </group>
            </structure>

            <!-- report文件保存地址 -->
            <html destdir="E:\工作\study\jacoco\report"   encoding="utf-8"/>

        </jacoco:report>
    </target>
</project>
