下面来好好谈谈DispatcherServlet的部分代码

    我们注意到该类中定义了一些well-known常量，呵呵，众所周知的常量

public static final String MULTIPART_RESOLVER_BEAN_NAME = "multipartResolver";

	public static final String LOCALE_RESOLVER_BEAN_NAME = "localeResolver";

	public static final String THEME_RESOLVER_BEAN_NAME = "themeResolver";

	/**
	 * Well-known name for the HandlerMapping object in the bean factory for this namespace.
	 * Only used when "detectAllHandlerMappings" is turned off.
	 * @see #setDetectAllHandlerMappings
	 */
	public static final String HANDLER_MAPPING_BEAN_NAME = "handlerMapping";

	public static final String HANDLER_ADAPTER_BEAN_NAME = "handlerAdapter";

	public static final String HANDLER_EXCEPTION_RESOLVER_BEAN_NAME = "handlerExceptionResolver";

	public static final String REQUEST_TO_VIEW_NAME_TRANSLATOR_BEAN_NAME = "viewNameTranslator";

	public static final String VIEW_RESOLVER_BEAN_NAME = "viewResolver";

	public static final String FLASH_MAP_MANAGER_BEAN_NAME = "flashMapManager";

	private static final String DEFAULT_STRATEGIES_PATH = "DispatcherServlet.properties";

/** Detect all HandlerMappings or just expect "handlerMapping" bean? */
	private boolean detectAllHandlerMappings = true;

	/** Detect all HandlerAdapters or just expect "handlerAdapter" bean? */
	private boolean detectAllHandlerAdapters = true;

	/** Detect all HandlerExceptionResolvers or just expect "handlerExceptionResolver" bean? */
	private boolean detectAllHandlerExceptionResolvers = true;

	/** Detect all ViewResolvers or just expect "viewResolver" bean? */
	private boolean detectAllViewResolvers = true;

	/** Perform cleanup of request attributes after include request? */
	private boolean cleanupAfterInclude = true;

	/** MultipartResolver used by this servlet */
	private MultipartResolver multipartResolver;

	/** LocaleResolver used by this servlet */
	private LocaleResolver localeResolver;

	/** ThemeResolver used by this servlet */
	private ThemeResolver themeResolver;

	/** List of HandlerMappings used by this servlet */
	private List<HandlerMapping> handlerMappings;

	/** List of HandlerAdapters used by this servlet */
	private List<HandlerAdapter> handlerAdapters;

	/** List of HandlerExceptionResolvers used by this servlet */
	private List<HandlerExceptionResolver> handlerExceptionResolvers;

	/** RequestToViewNameTranslator used by this servlet */
	private RequestToViewNameTranslator viewNameTranslator;

	/** FlashMapManager used by this servlet */
	private FlashMapManager flashMapManager;

	/** List of ViewResolvers used by this servlet */
	private List<ViewResolver> viewResolvers;

protected void initStrategies(ApplicationContext context) {
		initMultipartResolver(context);
		initLocaleResolver(context);
		initThemeResolver(context);
		initHandlerMappings(context);
		initHandlerAdapters(context);
		initHandlerExceptionResolvers(context);
		initRequestToViewNameTranslator(context);
		initViewResolvers(context);
		initFlashMapManager(context);
	}

/**
	 * Initialize the HandlerMappings used by this class.
	 * <p>If no HandlerMapping beans are defined in the BeanFactory for this namespace,
	 * we default to BeanNameUrlHandlerMapping.
	 */
	private void initHandlerMappings(ApplicationContext context) {
		this.handlerMappings = null;

		if (this.detectAllHandlerMappings) {
			// Find all HandlerMappings in the ApplicationContext, including ancestor contexts.
			Map<String, HandlerMapping> matchingBeans =
					BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
			if (!matchingBeans.isEmpty()) {
				this.handlerMappings = new ArrayList<HandlerMapping>(matchingBeans.values());
				// We keep HandlerMappings in sorted order.
				OrderComparator.sort(this.handlerMappings);
			}
		}
		else {
			try {
				HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
				this.handlerMappings = Collections.singletonList(hm);
			}
			catch (NoSuchBeanDefinitionException ex) {
				// Ignore, we''ll add a default HandlerMapping later.
			}
		}

		// Ensure we have at least one HandlerMapping, by registering
		// a default HandlerMapping if no other mappings are found.
		if (this.handlerMappings == null) {
			this.handlerMappings = getDefaultStrategies(context, HandlerMapping.class);
			if (logger.isDebugEnabled()) {
				logger.debug("No HandlerMappings found in servlet ''" + getServletName() + "'': using default");
			}
		}
	}

    doService方法里有这么一段

// Keep a snapshot of the request attributes in case of an include,
		// to be able to restore the original attributes after the include.
		Map<String, Object> attributesSnapshot = null;
		if (WebUtils.isIncludeRequest(request)) {
			attributesSnapshot = new HashMap<String, Object>();
			Enumeration<?> attrNames = request.getAttributeNames();
			while (attrNames.hasMoreElements()) {
				String attrName = (String) attrNames.nextElement();
				if (this.cleanupAfterInclude || attrName.startsWith("org.springframework.web.servlet")) {
					attributesSnapshot.put(attrName, request.getAttribute(attrName));
				}
			}
		}

下面进入重点doDispatch方法

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
			// multipart包装处理，我们常用CommonsMultipartResolver
                                processedRequest = checkMultipart(request);
				multipartRequestParsed = processedRequest != request;

				// Determine handler for the current request.
				mappedHandler = getHandler(processedRequest, false);
				if (mappedHandler == null || mappedHandler.getHandler() == null) { // 404
					noHandlerFound(processedRequest, response);
					return;
				}

				// Determine handler adapter for the current request.
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				// Process last-modified header, if supported by the handler.  // 代码省略

                                // 调用目标方法前，顺序执行拦截器
				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				try {
					// Actually invoke the handler.
					mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
				}
				finally {
					if (asyncManager.isConcurrentHandlingStarted()) {
						return;
					}
				}

				applyDefaultViewName(request, mv);
				// 调用目标方法后逆序执行拦截器
                                mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
		catch (Exception ex) {
			triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
		}
		catch (Error err) {
			triggerAfterCompletionWithError(processedRequest, response, mappedHandler, err);
		}
		finally {
			if (asyncManager.isConcurrentHandlingStarted()) {
				// Instead of postHandle and afterCompletion
				mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
				return;
			}
			// Clean up any resources used by a multipart request.
			if (multipartRequestParsed) {
				cleanupMultipart(processedRequest);
			}
		}
	}

HandlerExecutionChain

boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
		if (getInterceptors() != null) {
			for (int i = 0; i < getInterceptors().length; i++) {
				HandlerInterceptor interceptor = getInterceptors()[i];
				if (!interceptor.preHandle(request, response, this.handler)) {
					triggerAfterCompletion(request, response, null);
					return false;
				}
				this.interceptorIndex = i;
			}
		}
		return true;
	}

	/**
	 * Apply postHandle methods of registered interceptors.
	 */
	void applyPostHandle(HttpServletRequest request, HttpServletResponse response, ModelAndView mv) throws Exception {
		if (getInterceptors() == null) {
			return;
		}
		for (int i = getInterceptors().length - 1; i >= 0; i--) {
			HandlerInterceptor interceptor = getInterceptors()[i];
			interceptor.postHandle(request, response, this.handler, mv);
		}
	}

	/**
	 * Trigger afterCompletion callbacks on the mapped HandlerInterceptors.
	 * Will just invoke afterCompletion for all interceptors whose preHandle invocation
	 * has successfully completed and returned true.
	 */
	void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response, Exception ex)
			throws Exception {

		if (getInterceptors() == null) {
			return;
		}
		for (int i = this.interceptorIndex; i >= 0; i--) {
			HandlerInterceptor interceptor = getInterceptors()[i];
			try {
				interceptor.afterCompletion(request, response, this.handler, ex);
			}
			catch (Throwable ex2) {
				logger.error("HandlerInterceptor.afterCompletion threw exception", ex2);
			}
		}
	}

HandlerInterceptor

public interface HandlerInterceptor {

	boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler)
	    throws Exception;

	void postHandle(
			HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView)
			throws Exception;

	void afterCompletion(
			HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex)
			throws Exception;

}

 自定义

public class ExceptionHandler implements HandlerExceptionResolver {

    @Override
    public ModelAndView resolveException(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) {
        request.setAttribute("exception",ex.getMessage());
        ModelAndView mav = new ModelAndView();
        mav.setViewName("/error");
        return mav;
    }
}

registry.addResourceHandler("/static/**")
  .addResourceLocations("classpath:/static/").setCachePeriod(3600);

Cache-Control: max-age=3600,must-revalidate
Expires: Mon,04 Aug 2014 07:45:36 GMT
Pragma: no-cache

解决方法

<mvc:interceptors>
    <mvc:interceptor>
    <mvc:mapping path="/static/*"/>
        <bean id="webContentInterceptor">
            <property name="cacheSeconds" value="31556926"/>
            <property name="useExpiresHeader" value="true"/>
            <property name="useCacheControlHeader" value="true"/>
            <property name="useCacheControlNoStore" value="true"/>
        </bean>
   </mvc:interceptor>
</mvc:interceptors>

@Bean
public WebContentInterceptor webContentInterceptor() {
    WebContentInterceptor interceptor = new WebContentInterceptor();
    interceptor.setCacheSeconds(31556926);
    interceptor.setUseExpiresHeader(true);;
    interceptor.setUseCacheControlHeader(true);
    interceptor.setUseCacheControlNoStore(true);
    return interceptor;
}

@Override
public void addInterceptors(InterceptorRegistry registry) {
    registry.addInterceptor(webContentInterceptor());
}

1.用户发起请求到前端控制器。

2.前端控制器通过处理器映射器查找hander。

3.处理器映射器返回执行链。 a)hander对象 b)拦截器（集合）

4.前端控制器通处理器适配器包装，执行hander对象。思考：为什么要通过适配器来执行？

5.通过模型hander处理业务逻辑。

6.处理业务完成后，返回ModeAndView对象，其中有视图名称，模型数据。

7.将视图名称和模型数据返回到前端控制器。

8.前端控制器通过视图解释器查找视图对象。

9.视图解释器返回真正的视图。

10.前端控制器通过返回的视图和数据进行渲染。

11.返回渲染完成的视图。

12.将最终的视图返回给用户，产生响应。
//=====================================================================================//

1）当请求到达springmvc前段控制器的时候，会到达DispatcherServlet的doService（）方法

2）接着会调用doDispatcher()方法

3）接着会调用getHandler(processedRequest)获取当前的处理器

4）看getHandler(processedRequest)方法,会返回当前请求的处理器链。当前处理器联封装了负责请求的处理器及其方法

5）根据请求的处理器获取处理器适配器,通过调用getHandlerAdapter()获取

6）接下来调用handler()方法处理请求

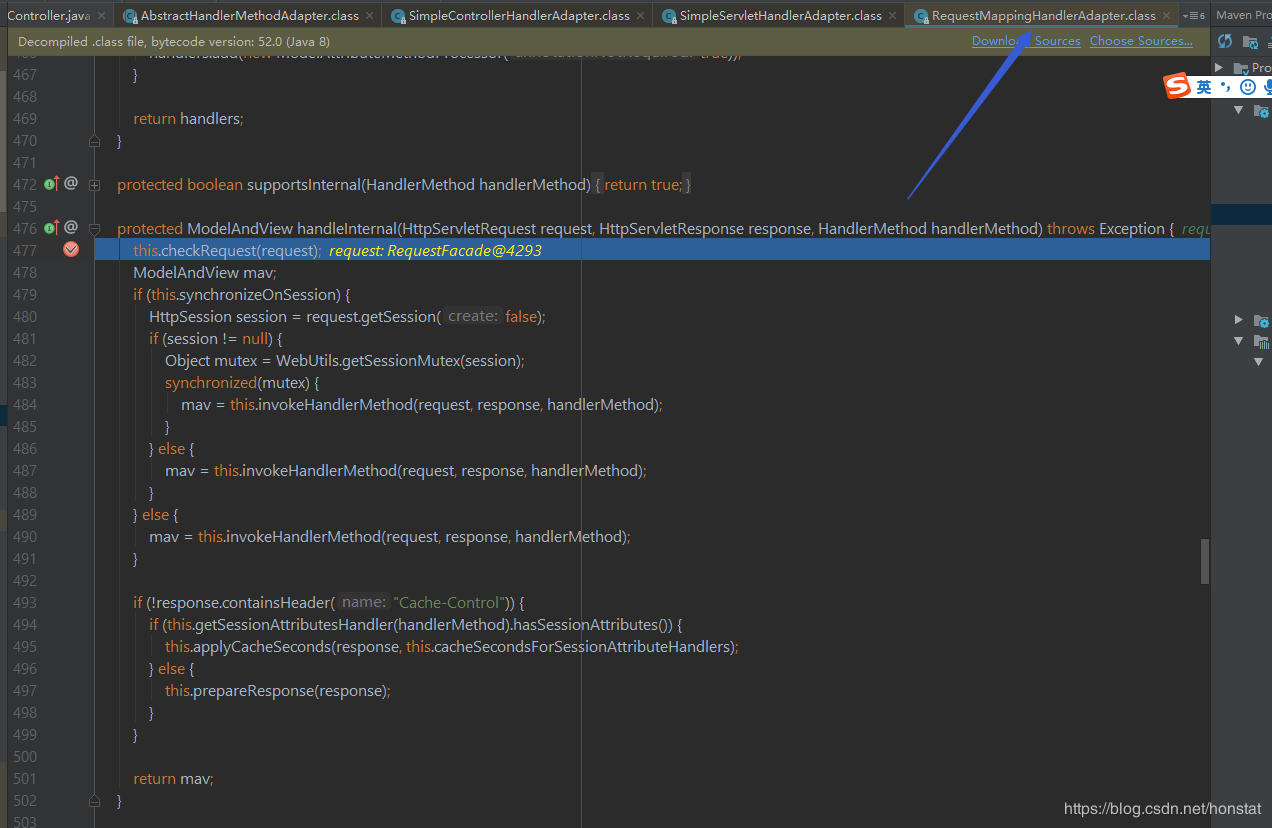

7）接着进入handler()方法瞧一瞧，来到了类的AbstractHandlerMethodAdapter的handleInternal()方法

8)最后执行调用

9）调用结束会返回modelAndView对象

下面来看一下service和doGet的代码，别的需要自己处理的方法都和doGet类似。
// org.springframework.web.servlet.FrameworkServlet
protected void service(HttpServletRequest request, HttpServletResponse response)throws ServletException, IOException {
　　String method = request.getMethod();
　　if (method.equalsIgnoreCase(RequestMethod.PATCH.name())) {
　　　　processRequest(request, response);
　　}else {
　　　　super.service(request, response);
　　}
}
protected final void doGet(HttpServletRequest request, HttpServletResponse response)throws ServletException, IOException {
　　processRequest(request, response);
}

下面就来看processRequest方法，processRequest是FrameworkServlet类在处理请求中最核心的方法。
// org.springframework.web.servlet.FrameworkServlet
protected final void processRequest(HttpServletRequest request, HttpServletResponse response)throws ServletException, IOException {
　　long startTime = System.currentTimeMillis();
　　Throwable failureCause = null;
　　// 获取LocaleContextHolder中原来保存的LocaleContext
　　LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
　　// 获取当前请求的LocaleContext
　　LocaleContext localeContext = buildLocaleContext(request);
　　// 获取RequestContextHolder中原来保存的RequestAttributes
　　RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();

　　//获取当前请求的ServletRequestAttributes
　　ServletRequestAttributes requestAttributes = buildRequestAttributes(request, response, previousAttributes);

　　WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
　　asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(), new RequestBindingInterceptor());
　　//将当前请求的LocaleContext和ServletRequestAttributes设置到LocaleContextHolder和RequestContextHolder
　　initContextHolders(request, localeContext, requestAttributes);

　　try {
　　//实际处理请求入口
　　doService(request, response);
　　}catch (ServletException ex) {
　　failureCause = ex;
　　throw ex;
　　}catch (IOException ex) {
　　　　failureCause = ex;
　　　　throw ex;
　　}catch (Throwable ex) {
　　　　failureCause = ex;
　　　　throw new NestedServletException("Request processing failed", ex);
　　}finally {
　　//恢复原来的LocaleContext和ServletRequestAttributes到LocaleContextHolder和RequestContextHolder中
　　resetContextHolders(request, previousLocaleContext, previousAttributes);
　　if (requestAttributes != null) {
　　requestAttributes.requestCompleted();
}
　　//省略了log代码
　　//发布ServletRequestHandledEvent消息
　　publishRequestHandledEvent(request, response, startTime, failureCause);
}
}

// org.springframework.web.context.request.ServletRequestAttributes
public void setAttribute(String name, Object value, int scope) {
if (scope == SCOPE_REQUEST) {
if (!isRequestActive()) {
throw new IllegalStateException(
"Cannot set request attribute - request is not active anymore!");
}
this.request.setAttribute(name, value);
}else {
HttpSession session = getSession(true);
this.sessionAttributesToUpdate.remove(name);
session.setAttribute(name, value);
}
}

// org.springframework.context.i18n.LocaleContextHolder
private static final ThreadLocal<LocaleContext> localeContextHolder =
new NamedThreadLocal<LocaleContext>("Locale context");

private static final ThreadLocal<LocaleContext> inheritableLocaleContextHolder =
new NamedInheritableThreadLocal<LocaleContext>("Locale context");

ServletRequestHandledEvent消息，代码如下：
// org.springframework.web.servlet.FrameworkServlet
private void publishRequestHandledEvent(
HttpServletRequest request, HttpServletResponse response, long startTime, Throwable failureCause) {
// publishEvents可以在配置Servlet时设置，默认为true
if (this.publishEvents) {
// 无论请求是否执行成功都会发布消息
long processingTime = System.currentTimeMillis() - startTime;
int statusCode = (responseGetStatusAvailable ? response.getStatus() : -1);
this.webApplicationContext.publishEvent(
new ServletRequestHandledEvent(this,
request.getRequestURI(), request.getRemoteAddr(),
request.getMethod(), getServletConfig().getServletName(),
WebUtils.getSessionId(request), getUsernameForRequest(request),
processingTime, failureCause, statusCode));
}
}

@Component
public class ServletRequestHandledEventListener implements ApplicationListener<ServletRequestHandledEvent> {
final static Logger logger = LoggerFactory.getLogger("RequestProcessLog");
@Override
public void onApplicationEvent(ServletRequestHandledEvent event) {
logger.info(event.getDescription());
}
}
