DiQuick Web UI 框架 V1.3.6 版本更新(disruptor框架)

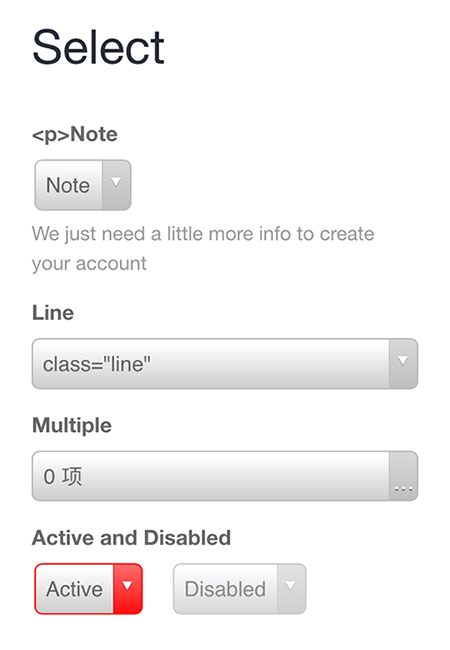

DiQuick Web UI 框架,包含诸多组件:Nav、Tab、Media、Form、Menu、Slider、Dialog 等,简化的HTML结构与预定义CSS,可快速创建响应式布局,在线自定义风格工具轻松创建私有样式,支持外部加载的组件自动绑定事件,致力于开发轻量化、语义化、扩展性强的 Web UI 框架。
V1.3.6 更新内容
- 修订了消息框组件
- 修订了会话窗组件
- V1.3.2及以上版本可直接覆盖源文件升级,此版本不会产生任何迁移冲突
软件中文首页
http://www.diquick.com/
Android 6.0 7.0 8.0 一个简单的 app 内更新版本 - okgo app 版本更新
登陆时 splash 初始页调用接口检查 app 版本。如有更新,使用 okGo 的文件下载,保存到指定位置,调用 Android 安装 apk。
<!-- Android 8.0 (Android O)为了针对一些流氓软件引导用户安装其他无关应用。在应用权限设置的“特殊访问权限”中,加入了“安装其他应用”的设置 -->
<uses-permission android:name="android.permission.REQUEST_INSTALL_PACKAGES"/>
package com.test.activity.sys;
import android.Manifest;
import android.app.Activity;
import android.content.Context;
import android.content.DialogInterface;
import android.content.Intent;
import android.content.pm.PackageInfo;
import android.content.pm.PackageManager;
import android.net.Uri;
import android.os.Build;
import android.os.Environment;
import android.os.Handler;
import android.os.Looper;
import android.provider.Settings;
import android.support.annotation.NonNull;
import android.support.annotation.Nullable;
import android.os.Bundle;
import android.support.v4.app.ActivityCompat;
import android.support.v4.content.FileProvider;
import android.support.v7.app.AlertDialog;
import android.text.format.Formatter;
import android.util.Log;
import android.view.View;
import android.view.Window;
import android.widget.TextView;
import android.widget.Toast;
import com.lzy.okgo.OkGo;
import com.lzy.okgo.callback.FileCallback;
import com.lzy.okgo.callback.StringCallback;
import com.lzy.okgo.convert.FileConvert;
import com.lzy.okgo.model.Progress;
import com.lzy.okgo.model.Response;
import com.test.BuildConfig;
import com.test.Constant;
import com.test.R;
import com.test.activity.MainActivity;
import com.test.activity.sys.LoginActivity;
import com.test.util.DataUtils;
import com.test.view.NumberProgressBar;
import org.json.JSONException;
import org.json.JSONObject;
import java.io.File;
import java.text.NumberFormat;
/**
* @author cralor
* @date 2018/8/8
* 启动页 Activity
*/
public class SplashActivity extends Activity{
public static final int INSTALL_APK_REQUESTCODE = 3;
public static final int GET_UNKNOWN_APP_SOURCES = 7;
private File apkFile;
/**
* 可以额外指定文件的下载目录和下载完成后的文件名
*/
private String destFileDir = Environment.getExternalStorageDirectory() + FileConvert.DM_TARGET_FOLDER + "myAppDownload" + File.separator;
private String destFileName = "myApp.apk";
private Handler handler;
private Context content;
private TextView tvDownloadSize;
private TextView tvProgress;
private TextView tvNetSpeed;
private NumberProgressBar pbProgress;
private NumberFormat numberFormat;
@Override
protected void onCreate(@Nullable Bundle savedInstanceState) {
//去掉标题栏
requestWindowFeature(Window.FEATURE_NO_TITLE);
// getWindow().setFlags(WindowManager.LayoutParams. FLAG_FULLSCREEN ,WindowManager.LayoutParams. FLAG_FULLSCREEN);
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_splash);
content = this;
handler = new Handler(Looper.getMainLooper());
numberFormat = NumberFormat.getPercentInstance();
numberFormat.setMinimumFractionDigits(2);
initView();
}
/**
* 打开程序时判断是否已经登陆过,且token有效
*/
private void initView() {
// ...
handler.postDelayed(new Runnable() {
@Override
public void run() {
OkGo.<String>post(Constant.GET_VERSION)
.tag(1)
.execute(new StringCallback() {
@Override
public void onSuccess(Response<String> response) {
String data = response.body();
String code = "";
String sysVersion = "";
try {
JSONObject jsonObject = new JSONObject(data);
code = jsonObject.get("code").toString();
sysVersion = jsonObject.get("data").toString();
} catch (JSONException e) {
e.printStackTrace();
}
Log.v("data",""+code);
if(Constant.SUCCESS_CODE.equals(code)){
// Android studio 中 build.gradle 中的版本号
// 获取PackageManager的实例
PackageManager packageManager = getPackageManager();
// getPackageName()是你当前类的包名,0代表是获取版本信息
PackageInfo packInfo = null;
String appVersion = "";
try {
packInfo = packageManager.getPackageInfo(getPackageName(), 0);
} catch (PackageManager.NameNotFoundException e) {
e.printStackTrace();
}
if (packInfo != null) {
appVersion = packInfo.versionName;
}
if(appVersion.equals(sysVersion)){
Intent intent = new Intent(SplashActivity.this, MainActivity.class);
startActivity(intent);
finish();
}else{
Log.e("SplashActivity","需要更新版本到---"+sysVersion);
Toast.makeText(content, "有新版本需要更新", Toast.LENGTH_SHORT).show();
getVersion();
}
}
}
@Override
public void onError(Response<String> response) {
Toast.makeText(content, "请求失败", Toast.LENGTH_SHORT).show();
Intent intent = new Intent(SplashActivity.this, LoginActivity.class);
startActivity(intent);
overridePendingTransition(android.R.anim.fade_in, android.R.anim.fade_out);
finish();
}
});
}
}, 3);
}
/**
* 更新弹出框
*/
public void getVersion(){
//退出的确认弹出框
new AlertDialog.Builder(content)
.setTitle("提示")
.setMessage("请更新最新版本")
.setCancelable(false)
.setPositiveButton("确定", new DialogInterface.OnClickListener() {
@Override
public void onClick(DialogInterface dialog, int whichButton) {
Toast.makeText(content, "dianjixiazai ", Toast.LENGTH_SHORT).show();
fileDownload();
View view1 = getLayoutInflater().inflate(R.layout.update_app_progress, null);
tvDownloadSize = view1.findViewById(R.id.downloadSize);
tvProgress = view1.findViewById(R.id.tvProgress);
tvNetSpeed = view1.findViewById(R.id.netSpeed);
pbProgress = view1.findViewById(R.id.pbProgress);
AlertDialog.Builder builder = new AlertDialog.Builder(content);
builder.setTitle("正在下载");
builder.setView(view1);
builder.setCancelable(false);
builder.setNegativeButton("取消", new DialogInterface.OnClickListener()
{
@Override
public void onClick(DialogInterface dialog, int which) {
finish();
}
});
builder.create().show();
}
})
.setNegativeButton("取消", new DialogInterface.OnClickListener() {
@Override
public void onClick(DialogInterface dialog, int whichButton) {
finish();
}
})
.show();
}
/**
* 获取服务器apk
*/
public void fileDownload() {
//检查是否获得写入权限,未获得则向用户请求。Android 7.0 以上需要动态获取权限
if (ActivityCompat.checkSelfPermission(SplashActivity.this, Manifest.permission.WRITE_EXTERNAL_STORAGE)
!= PackageManager.PERMISSION_GRANTED) {
//未获得,向用户请求
ActivityCompat.requestPermissions(SplashActivity.this, new String[]
{Manifest.permission.WRITE_EXTERNAL_STORAGE}, 200);
}
OkGo.<File>get("https://app地址/app.apk")
.tag(1)
.headers("header1", "headerValue1")
.params("param1", "paramValue1")
/*
* 文件目录如果不指定,默认下载的目录为 sdcard/download/,文件名如果不指定,则按照以下规则命名:
1.首先检查用户是否传入了文件名,如果传入,将以用户传入的文件名命名
2.如果没有传入,那么将会检查服务端返回的响应头是否含有Content-Disposition=attachment;filename=FileName.txt该种形式的响应头,如果有,则按照该响应头中指定的文件名命名文件,如FileName.txt
3.如果上述响应头不存在,则检查下载的文件url,例如:http://image.baidu.com/abc.jpg,那么将会自动以abc.jpg命名文件
4.如果url也把文件名解析不出来,那么最终将以"unknownfile_" + System.currentTimeMillis()命名文件
*/
.execute(new FileCallback(""+destFileDir, ""+destFileName) {
@Override
public void onSuccess(Response<File> response) {
String absolutePath = response.body().getAbsolutePath();
apkFile = response.body().getAbsoluteFile();
Log.e("appInstall---", ""+absolutePath);
//Android8.0 版本更新无法自动安装问题解决
if (Build.VERSION.SDK_INT >= 26) {
//来判断应用是否有权限安装apk
Log.e("appInstall---", "android版本8.0以上");
boolean installAllowed= getPackageManager().canRequestPackageInstalls();
//有权限
if (installAllowed) {
//安装apk
Log.e("appInstall---", "有权限安装apk");
installApk(apkFile);
} else {
//无权限 申请权限
Log.e("appInstall---", "无权限 申请权限");
ActivityCompat.requestPermissions(SplashActivity.this, new String[]{Manifest.permission.REQUEST_INSTALL_PACKAGES}, INSTALL_APK_REQUESTCODE);
}
} else {
Log.e("appInstall---", "android版本低于8.0");
installApk(apkFile);
}
}
@Override
public void onError(Response<File> response) {
Throwable exception = response.getException();
exception.printStackTrace();
Log.e("eeeee", exception.getMessage());
}
@Override
public void downloadProgress(Progress progress) {
System.out.println(progress);
String downloadLength = Formatter.formatFileSize(getApplicationContext(), progress.currentSize);
String totalLength = Formatter.formatFileSize(getApplicationContext(), progress.totalSize);
tvDownloadSize.setText(downloadLength + "/" + totalLength);
String speed = Formatter.formatFileSize(getApplicationContext(), progress.speed);
tvNetSpeed.setText(String.format("%s/s", speed));
tvProgress.setText(numberFormat.format(progress.fraction));
pbProgress.setMax(10000);
pbProgress.setProgress((int) (progress.fraction * 10000));
}
});
}
/**
* 权限申请回调
* @param requestCode requestCode
* @param permissions permissions
* @param grantResults grantResults
*/
@Override
public void onRequestPermissionsResult(int requestCode, @NonNull String[] permissions, @NonNull int[] grantResults) {
super.onRequestPermissionsResult(requestCode, permissions, grantResults);
switch (requestCode) {
case INSTALL_APK_REQUESTCODE:
//有注册权限且用户允许安装
if (grantResults.length > 0 && grantResults[0] == PackageManager.PERMISSION_GRANTED) {
Log.e("appInstall---", "有注册权限且用户允许安装");
installApk(apkFile);
} else {
//将用户引导至安装未知应用界面。
Intent intent = new Intent(Settings.ACTION_MANAGE_UNKNOWN_APP_SOURCES);
startActivityForResult(intent, GET_UNKNOWN_APP_SOURCES);
Log.e("appInstall---", "将用户引导至安装未知应用界面");
}
break;
default:break;
}
}
/**
* 将用户引导至安装未知应用界面,允许安装未知应用后,回到当前activity继续安装应用
* @param requestCode requestCode
* @param resultCode resultCode
* @param data data
*/
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
super.onActivityResult(requestCode, resultCode, data);
Log.e("appInstall---", "将用户引导至安装未知应用界面,允许安装未知应用后,回到当前activity继续安装应用");
installApk(apkFile);
}
/**
* 安装APK
* @param apkFile apkFile
*/
public void installApk(File apkFile){
//判读版本是否在7.0以上
if(Build.VERSION.SDK_INT >= 24) {
Log.e("appInstall---", "android版本7.");
//在AndroidManifest中的android:authorities的值, BuildConfig.APPLICATION_ID = com.test
Uri apkUri = FileProvider.getUriForFile(content, BuildConfig.APPLICATION_ID+".provider", apkFile);
Intent install = new Intent(Intent.ACTION_VIEW);
install.setFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
install.addFlags(Intent.FLAG_GRANT_READ_URI_PERMISSION);
install.setDataAndType(apkUri, "application/vnd.android.package-archive");
startActivity(install);
} else {
Log.e("appInstall---", "android版本低于7.0");
Intent install = new Intent(Intent.ACTION_VIEW);
install.setDataAndType(Uri.fromFile(apkFile), "application/vnd.android.package-archive");
install.setFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
startActivity(install);
}
finish();
}
/**
* 调用默认浏览器下载apk
*/
public void getApk(){
Uri uri = Uri.parse("https://lighttruck.com.cn:8086/app.apk");
Intent intent = new Intent(Intent.ACTION_VIEW, uri);
startActivity(intent);
}
}
activity_splash.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:gravity="center"
tools:context="com.test.activity.sys.SplashActivity">
</LinearLayout>
初始页面自定义主题
<!-- 加载页面 -->
<activity
android:name=".activity.sys.SplashActivity"
android:theme="@style/SplashTheme">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<style name="SplashTheme" parent="AppBaseTheme">
<!-- 欢迎页背景引用刚才写好的 -->
<item name="android:windowBackground">@drawable/splash</item>
<item name="android:windowFullscreen">true</item>
<!-- <item name="android:windowIsTranslucent">true</item> --> <!-- 透明背景 -->
</style>
update_app_progress.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:id="@+id/update_app_progress"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:background="@color/bg_gray"
android:orientation="vertical" >
<RelativeLayout
android:layout_width="match_parent"
android:layout_height="20dp"
android:layout_marginTop="10dp">
<TextView
android:id="@+id/downloadSize"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_centerVertical="true"
android:text="--M/--M"
android:textSize="10sp"/>
<TextView
android:id="@+id/netSpeed"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentRight="true"
android:layout_centerVertical="true"
android:layout_marginRight="10dp"
android:text="---K/s"
android:textSize="10sp"/>
<TextView
android:id="@+id/tvProgress"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_centerHorizontal="true"
android:layout_centerVertical="true"
android:text="--.--%"
android:textSize="10sp"/>
</RelativeLayout>
<com.test.view.NumberProgressBar
android:id="@+id/pbProgress"
android:layout_width="match_parent"
android:layout_height="wrap_content"
app:progress_reached_bar_height="1.5dp"
app:progress_reached_color="#3498DB"
app:progress_text_color="#3498DB"
app:progress_text_size="10sp"
app:progress_unreached_bar_height="0.75dp"
app:progress_unreached_color="#CCCCCC"/>
</LinearLayout>
NumberProgressBar 为okGo中的view
/*
* Copyright 2016 jeasonlzy(廖子尧)
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.test.view;
import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.RectF;
import android.os.Bundle;
import android.os.Parcelable;
import android.util.AttributeSet;
import android.view.View;
import com.test.R;
/**
* ================================================
* 作 者:jeasonlzy(廖子尧)Github地址:https://github.com/jeasonlzy
* 版 本:1.0
* 创建日期:16/9/11
* 描 述:
* 修订历史:
* ================================================
*/
public class NumberProgressBar extends View {
public interface OnProgressBarListener {
void onProgressChange(int current, int max);
}
private int mMaxProgress = 100;
/**
* Current progress, can not exceed the max progress.
*/
private int mCurrentProgress = 0;
/**
* The progress area bar color.
*/
private int mReachedBarColor;
/**
* The bar unreached area color.
*/
private int mUnreachedBarColor;
/**
* The progress text color.
*/
private int mTextColor;
/**
* The progress text size.
*/
private float mTextSize;
/**
* The height of the reached area.
*/
private float mReachedBarHeight;
/**
* The height of the unreached area.
*/
private float mUnreachedBarHeight;
/**
* The suffix of the number.
*/
private String mSuffix = "%";
/**
* The prefix.
*/
private String mPrefix = "";
private final int default_text_color = Color.rgb(66, 145, 241);
private final int default_reached_color = Color.rgb(66, 145, 241);
private final int default_unreached_color = Color.rgb(204, 204, 204);
private final float default_progress_text_offset;
private final float default_text_size;
private final float default_reached_bar_height;
private final float default_unreached_bar_height;
/**
* For save and restore instance of progressbar.
*/
private static final String INSTANCE_STATE = "saved_instance";
private static final String INSTANCE_TEXT_COLOR = "text_color";
private static final String INSTANCE_TEXT_SIZE = "text_size";
private static final String INSTANCE_REACHED_BAR_HEIGHT = "reached_bar_height";
private static final String INSTANCE_REACHED_BAR_COLOR = "reached_bar_color";
private static final String INSTANCE_UNREACHED_BAR_HEIGHT = "unreached_bar_height";
private static final String INSTANCE_UNREACHED_BAR_COLOR = "unreached_bar_color";
private static final String INSTANCE_MAX = "max";
private static final String INSTANCE_PROGRESS = "progress";
private static final String INSTANCE_SUFFIX = "suffix";
private static final String INSTANCE_PREFIX = "prefix";
private static final String INSTANCE_TEXT_VISIBILITY = "text_visibility";
private static final int PROGRESS_TEXT_VISIBLE = 0;
/**
* The width of the text that to be drawn.
*/
private float mDrawTextWidth;
/**
* The drawn text start.
*/
private float mDrawTextStart;
/**
* The drawn text end.
*/
private float mDrawTextEnd;
/**
* The text that to be drawn in onDraw().
*/
private String mCurrentDrawText;
/**
* The Paint of the reached area.
*/
private Paint mReachedBarPaint;
/**
* The Paint of the unreached area.
*/
private Paint mUnreachedBarPaint;
/**
* The Paint of the progress text.
*/
private Paint mTextPaint;
/**
* Unreached bar area to draw rect.
*/
private RectF mUnreachedRectF = new RectF(0, 0, 0, 0);
/**
* Reached bar area rect.
*/
private RectF mReachedRectF = new RectF(0, 0, 0, 0);
/**
* The progress text offset.
*/
private float mOffset;
/**
* Determine if need to draw unreached area.
*/
private boolean mDrawUnreachedBar = true;
private boolean mDrawReachedBar = true;
private boolean mIfDrawText = true;
/**
* Listener
*/
private OnProgressBarListener mListener;
public enum ProgressTextVisibility {
Visible, Invisible
}
public NumberProgressBar(Context context) {
this(context, null);
}
public NumberProgressBar(Context context, AttributeSet attrs) {
this(context, attrs, 0);
}
public NumberProgressBar(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
default_reached_bar_height = dp2px(1.5f);
default_unreached_bar_height = dp2px(1.0f);
default_text_size = sp2px(10);
default_progress_text_offset = dp2px(3.0f);
//load styled attributes.
final TypedArray attributes = context.getTheme().obtainStyledAttributes(attrs, R.styleable.NumberProgressBar, defStyleAttr, 0);
mReachedBarColor = attributes.getColor(R.styleable.NumberProgressBar_progress_reached_color, default_reached_color);
mUnreachedBarColor = attributes.getColor(R.styleable.NumberProgressBar_progress_unreached_color, default_unreached_color);
mTextColor = attributes.getColor(R.styleable.NumberProgressBar_progress_text_color, default_text_color);
mTextSize = attributes.getDimension(R.styleable.NumberProgressBar_progress_text_size, default_text_size);
mReachedBarHeight = attributes.getDimension(R.styleable.NumberProgressBar_progress_reached_bar_height, default_reached_bar_height);
mUnreachedBarHeight = attributes.getDimension(R.styleable.NumberProgressBar_progress_unreached_bar_height, default_unreached_bar_height);
mOffset = attributes.getDimension(R.styleable.NumberProgressBar_progress_text_offset, default_progress_text_offset);
int textVisible = attributes.getInt(R.styleable.NumberProgressBar_progress_text_visibility, PROGRESS_TEXT_VISIBLE);
if (textVisible != PROGRESS_TEXT_VISIBLE) {
mIfDrawText = false;
}
setProgress(attributes.getInt(R.styleable.NumberProgressBar_progress_current, 0));
setMax(attributes.getInt(R.styleable.NumberProgressBar_progress_max, 100));
attributes.recycle();
initializePainters();
}
@Override
protected int getSuggestedMinimumWidth() {
return (int) mTextSize;
}
@Override
protected int getSuggestedMinimumHeight() {
return Math.max((int) mTextSize, Math.max((int) mReachedBarHeight, (int) mUnreachedBarHeight));
}
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
setMeasuredDimension(measure(widthMeasureSpec, true), measure(heightMeasureSpec, false));
}
private int measure(int measureSpec, boolean isWidth) {
int result;
int mode = MeasureSpec.getMode(measureSpec);
int size = MeasureSpec.getSize(measureSpec);
int padding = isWidth ? getPaddingLeft() + getPaddingRight() : getPaddingTop() + getPaddingBottom();
if (mode == MeasureSpec.EXACTLY) {
result = size;
} else {
result = isWidth ? getSuggestedMinimumWidth() : getSuggestedMinimumHeight();
result += padding;
if (mode == MeasureSpec.AT_MOST) {
if (isWidth) {
result = Math.max(result, size);
} else {
result = Math.min(result, size);
}
}
}
return result;
}
@Override
protected void onDraw(Canvas canvas) {
if (mIfDrawText) {
calculateDrawRectF();
} else {
calculateDrawRectFWithoutProgressText();
}
if (mDrawReachedBar) {
canvas.drawRect(mReachedRectF, mReachedBarPaint);
}
if (mDrawUnreachedBar) {
canvas.drawRect(mUnreachedRectF, mUnreachedBarPaint);
}
if (mIfDrawText) canvas.drawText(mCurrentDrawText, mDrawTextStart, mDrawTextEnd, mTextPaint);
}
private void initializePainters() {
mReachedBarPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
mReachedBarPaint.setColor(mReachedBarColor);
mUnreachedBarPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
mUnreachedBarPaint.setColor(mUnreachedBarColor);
mTextPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
mTextPaint.setColor(mTextColor);
mTextPaint.setTextSize(mTextSize);
}
private void calculateDrawRectFWithoutProgressText() {
mReachedRectF.left = getPaddingLeft();
mReachedRectF.top = getHeight() / 2.0f - mReachedBarHeight / 2.0f;
mReachedRectF.right = (getWidth() - getPaddingLeft() - getPaddingRight()) / (getMax() * 1.0f) * getProgress() + getPaddingLeft();
mReachedRectF.bottom = getHeight() / 2.0f + mReachedBarHeight / 2.0f;
mUnreachedRectF.left = mReachedRectF.right;
mUnreachedRectF.right = getWidth() - getPaddingRight();
mUnreachedRectF.top = getHeight() / 2.0f + -mUnreachedBarHeight / 2.0f;
mUnreachedRectF.bottom = getHeight() / 2.0f + mUnreachedBarHeight / 2.0f;
}
private void calculateDrawRectF() {
mCurrentDrawText = String.format("%d", getProgress() * 100 / getMax());
mCurrentDrawText = mPrefix + mCurrentDrawText + mSuffix;
mDrawTextWidth = mTextPaint.measureText(mCurrentDrawText);
if (getProgress() == 0) {
mDrawReachedBar = false;
mDrawTextStart = getPaddingLeft();
} else {
mDrawReachedBar = true;
mReachedRectF.left = getPaddingLeft();
mReachedRectF.top = getHeight() / 2.0f - mReachedBarHeight / 2.0f;
mReachedRectF.right = (getWidth() - getPaddingLeft() - getPaddingRight()) / (getMax() * 1.0f) * getProgress() - mOffset + getPaddingLeft();
mReachedRectF.bottom = getHeight() / 2.0f + mReachedBarHeight / 2.0f;
mDrawTextStart = (mReachedRectF.right + mOffset);
}
mDrawTextEnd = (int) ((getHeight() / 2.0f) - ((mTextPaint.descent() + mTextPaint.ascent()) / 2.0f));
if ((mDrawTextStart + mDrawTextWidth) >= getWidth() - getPaddingRight()) {
mDrawTextStart = getWidth() - getPaddingRight() - mDrawTextWidth;
mReachedRectF.right = mDrawTextStart - mOffset;
}
float unreachedBarStart = mDrawTextStart + mDrawTextWidth + mOffset;
if (unreachedBarStart >= getWidth() - getPaddingRight()) {
mDrawUnreachedBar = false;
} else {
mDrawUnreachedBar = true;
mUnreachedRectF.left = unreachedBarStart;
mUnreachedRectF.right = getWidth() - getPaddingRight();
mUnreachedRectF.top = getHeight() / 2.0f + -mUnreachedBarHeight / 2.0f;
mUnreachedRectF.bottom = getHeight() / 2.0f + mUnreachedBarHeight / 2.0f;
}
}
/**
* Get progress text color.
*
* @return progress text color.
*/
public int getTextColor() {
return mTextColor;
}
/**
* Get progress text size.
*
* @return progress text size.
*/
public float getProgressTextSize() {
return mTextSize;
}
public int getUnreachedBarColor() {
return mUnreachedBarColor;
}
public int getReachedBarColor() {
return mReachedBarColor;
}
public int getProgress() {
return mCurrentProgress;
}
public int getMax() {
return mMaxProgress;
}
public float getReachedBarHeight() {
return mReachedBarHeight;
}
public float getUnreachedBarHeight() {
return mUnreachedBarHeight;
}
public void setProgressTextSize(float textSize) {
this.mTextSize = textSize;
mTextPaint.setTextSize(mTextSize);
invalidate();
}
public void setProgressTextColor(int textColor) {
this.mTextColor = textColor;
mTextPaint.setColor(mTextColor);
invalidate();
}
public void setUnreachedBarColor(int barColor) {
this.mUnreachedBarColor = barColor;
mUnreachedBarPaint.setColor(mUnreachedBarColor);
invalidate();
}
public void setReachedBarColor(int progressColor) {
this.mReachedBarColor = progressColor;
mReachedBarPaint.setColor(mReachedBarColor);
invalidate();
}
public void setReachedBarHeight(float height) {
mReachedBarHeight = height;
}
public void setUnreachedBarHeight(float height) {
mUnreachedBarHeight = height;
}
public void setMax(int maxProgress) {
if (maxProgress > 0) {
this.mMaxProgress = maxProgress;
invalidate();
}
}
public void setSuffix(String suffix) {
if (suffix == null) {
mSuffix = "";
} else {
mSuffix = suffix;
}
}
public String getSuffix() {
return mSuffix;
}
public void setPrefix(String prefix) {
if (prefix == null) mPrefix = "";
else {
mPrefix = prefix;
}
}
public String getPrefix() {
return mPrefix;
}
public void incrementProgressBy(int by) {
if (by > 0) {
setProgress(getProgress() + by);
}
if (mListener != null) {
mListener.onProgressChange(getProgress(), getMax());
}
}
public void setProgress(int progress) {
if (progress <= getMax() && progress >= 0) {
this.mCurrentProgress = progress;
invalidate();
}
}
@Override
protected Parcelable onSaveInstanceState() {
final Bundle bundle = new Bundle();
bundle.putParcelable(INSTANCE_STATE, super.onSaveInstanceState());
bundle.putInt(INSTANCE_TEXT_COLOR, getTextColor());
bundle.putFloat(INSTANCE_TEXT_SIZE, getProgressTextSize());
bundle.putFloat(INSTANCE_REACHED_BAR_HEIGHT, getReachedBarHeight());
bundle.putFloat(INSTANCE_UNREACHED_BAR_HEIGHT, getUnreachedBarHeight());
bundle.putInt(INSTANCE_REACHED_BAR_COLOR, getReachedBarColor());
bundle.putInt(INSTANCE_UNREACHED_BAR_COLOR, getUnreachedBarColor());
bundle.putInt(INSTANCE_MAX, getMax());
bundle.putInt(INSTANCE_PROGRESS, getProgress());
bundle.putString(INSTANCE_SUFFIX, getSuffix());
bundle.putString(INSTANCE_PREFIX, getPrefix());
bundle.putBoolean(INSTANCE_TEXT_VISIBILITY, getProgressTextVisibility());
return bundle;
}
@Override
protected void onRestoreInstanceState(Parcelable state) {
if (state instanceof Bundle) {
final Bundle bundle = (Bundle) state;
mTextColor = bundle.getInt(INSTANCE_TEXT_COLOR);
mTextSize = bundle.getFloat(INSTANCE_TEXT_SIZE);
mReachedBarHeight = bundle.getFloat(INSTANCE_REACHED_BAR_HEIGHT);
mUnreachedBarHeight = bundle.getFloat(INSTANCE_UNREACHED_BAR_HEIGHT);
mReachedBarColor = bundle.getInt(INSTANCE_REACHED_BAR_COLOR);
mUnreachedBarColor = bundle.getInt(INSTANCE_UNREACHED_BAR_COLOR);
initializePainters();
setMax(bundle.getInt(INSTANCE_MAX));
setProgress(bundle.getInt(INSTANCE_PROGRESS));
setPrefix(bundle.getString(INSTANCE_PREFIX));
setSuffix(bundle.getString(INSTANCE_SUFFIX));
setProgressTextVisibility(bundle.getBoolean(INSTANCE_TEXT_VISIBILITY) ? ProgressTextVisibility.Visible : ProgressTextVisibility.Invisible);
super.onRestoreInstanceState(bundle.getParcelable(INSTANCE_STATE));
return;
}
super.onRestoreInstanceState(state);
}
public float dp2px(float dp) {
final float scale = getResources().getDisplayMetrics().density;
return dp * scale + 0.5f;
}
public float sp2px(float sp) {
final float scale = getResources().getDisplayMetrics().scaledDensity;
return sp * scale;
}
public void setProgressTextVisibility(ProgressTextVisibility visibility) {
mIfDrawText = visibility == ProgressTextVisibility.Visible;
invalidate();
}
public boolean getProgressTextVisibility() {
return mIfDrawText;
}
public void setOnProgressBarListener(OnProgressBarListener listener) {
mListener = listener;
}
}
APP测试通用用例--我的(用户角色全选、资料、修改密码、版本更新、消息提醒、关于APP、清除缓存等)
注意用户角色权限控制:
编号 | 步骤 | 预期 |
---|---|---|
1 |
使用系统管理员账号登录系统
|
可查看所有应用内显示的全部信息 |
2 |
使用普通用户账号登录系统
|
根据平台端设置的权限,查看对应的信息 |
(1)我的主页页面展示(具体根据UI效果图上的具体内容进行展示)
编号 | 步骤 | 预期 |
---|---|---|
1 |
点击左上角的
人物按钮
|
弹出我的主页弹窗,显示用户头像、账号名称,我的资料、修改密码等,图标与文字相对应 |
2 |
我的资料页面
|
头像、文案显示正常 |
3 |
修改密码页面
|
页面正常显示,文案无错乱 |
4 |
设置页面
|
页面正常显示,开关打开状态时,开关显示蓝色,关闭状态时,开关显示灰色 |
5 |
关注页面
|
页面正常显示 |
6 |
关于app页面
|
页面正常显示,图标logo显示正确 |
编号 | 步骤 | 预期 |
---|---|---|
1 |
点击左上角的
人物按钮
|
弹出侧边栏,显示我的主页 |
2 |
点击我的资料
|
可查看个人资料,资料不可修改 |
编号 | 步骤 | 预期 |
---|---|---|
1 |
输入正确旧密码
|
进入输入新密码页面 |
2 |
输入错误旧密码
|
提示密码错误请重新输入 |
3 |
不输入旧密码,点击确定按钮
|
提示密码为空 |
4 |
输入任一新密码(字母、数字、特殊符号、表情),点击确定
|
提示成功修改密码 |
编号 | 步骤 | 预期 |
---|---|---|
1 |
点击设置
|
进入设置页面 |
2 |
点击开启新消息通知\设备报警通知\数据报警产生通知\审核退回通知
|
当有新消息(系统通知)\设备报警通知\数据报警产生通知\审核退回通知时,可收到通知提醒 |
3 |
点击关闭消息通知
|
当有新消息(系统通知)\设备报警通知\数据报警\审核退回通知时,收不到通知提醒 |
4 |
点击开启声音\震动开关
|
当通知开关开启时,当收到新通知,可产生声音\震动 |
5 |
点击退出登录
|
退出当前账号登录,回到登录首页 |
(5)我的主页--清除缓存
编号 | 步骤 | 预期 |
---|---|---|
1 |
点击清除缓存
|
清除应用缓存,手机内存空间减少相应的缓存大小 |
(6)关于APP
编号 | 步骤 | 预期 |
---|---|---|
1 |
点击关于app
|
进入关于app页面,显示应用logo,当前版本,更新时间、应用下载二维码、检查更新按钮 |
2 |
当app为旧版本时,查看关于APP页面
|
当前版本、更新时间显示正确 |
3 |
当app为旧版本时,点击检查更新按钮
|
直接下载安装包 |
4 |
正在下载安装包的过程中,再次点击更新按钮
|
提示正在下载安装包中 |
5 |
不安装最新版本的安装包,将下载的安装包删除,点击更新按钮
|
重新下载安装包 |
6 |
当app为最新版本时,查看关于APP页面
|
当前版本、更新时间显示正确 |
7 |
当app为最新版本时,点击检查更新按钮
|
提示当前已是最新版本 |
8 |
已下载该app,扫描二维码下载
|
可覆盖安装 |
9 |
未下载该app,扫描二维码下载
|
可成功安装 |
DiQuick CSS 前端框架 V1.1.3 版本更新
DiQuick Web 前端框架,采用 HTML+CSS3+jQuery,配置有响应式布局及预定义设置,包含诸多组件:Nav、Tab、Media、Form、Table、Menu 等,致力于快速开发轻量化、语义化、扩展性强的 Web 前端项目。
软件中文首页
http://www.diquick.com/
V1.1.3 版本升级内容
V1.1.3 版本修订内容
修订下拉菜单类名
升级表格组件响应式滚动模式

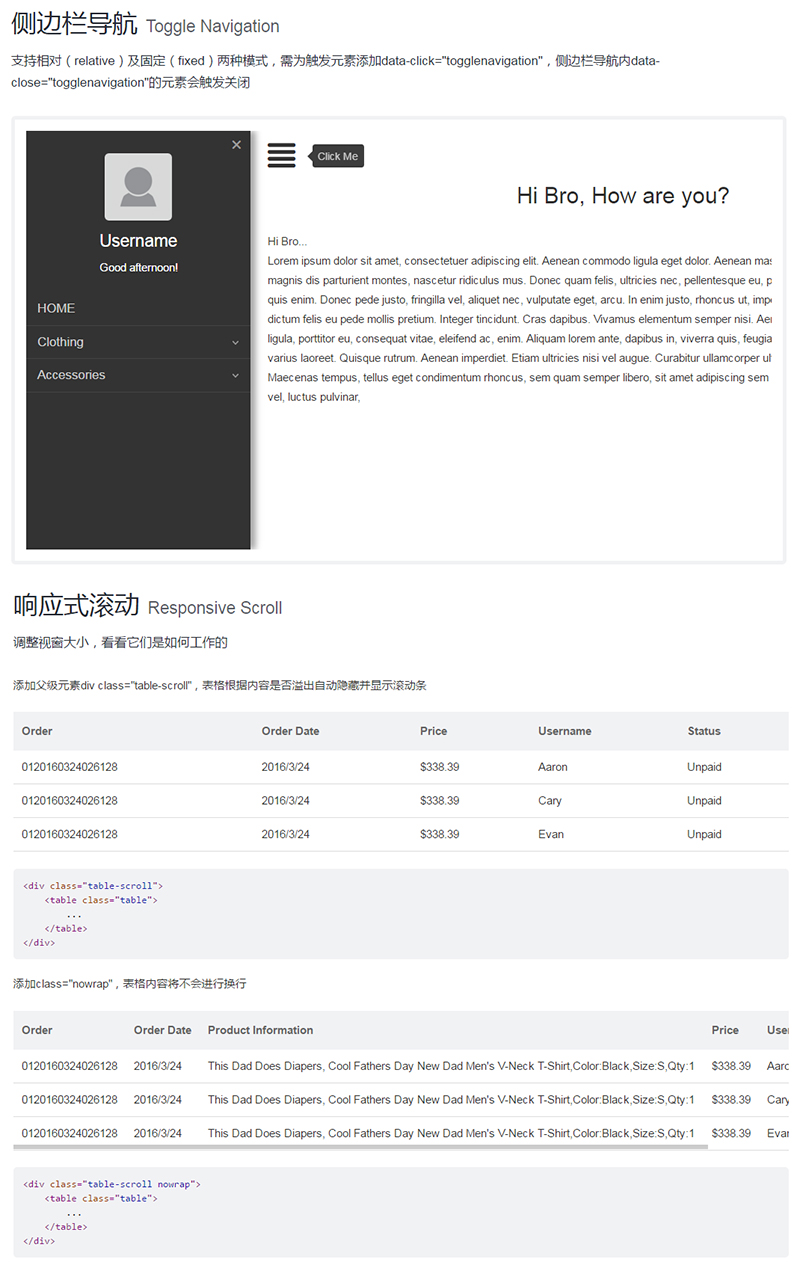

升级侧边栏导航触摸回弹效果
DiQuick CSS 框架 V1.1.2 版本更新
DiQuick Web 前端框架,采用 HTML+CSS3+jQuery,配置有响应式布局及预定义设置,包含诸多组件:Nav、Tab、Media、Form、Table、Menu 等,致力于快速开发轻量化、语义化、扩展性强的 Web 前端项目。
软件中文首页
http://www.diquick.com/
V1.1.2 版本升级内容
V1.1.2 版本修订内容
修订块级按钮的偏移错误
修订翻页组件响应式兼容性问题
修订表单组件排列、类型及兼容问题
增加表单组件纯文本模式
今天关于DiQuick Web UI 框架 V1.3.6 版本更新和disruptor框架的分享就到这里,希望大家有所收获,若想了解更多关于Android 6.0 7.0 8.0 一个简单的 app 内更新版本 - okgo app 版本更新、APP测试通用用例--我的(用户角色全选、资料、修改密码、版本更新、消息提醒、关于APP、清除缓存等)、DiQuick CSS 前端框架 V1.1.3 版本更新、DiQuick CSS 框架 V1.1.2 版本更新等相关知识,可以在本站进行查询。
本文标签:
