web.xml

<display-name>myTest</display-name>

<context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>/WEB-INF/spring/root-context.xml</param-value>
</context-param>

<context-param>
    <param-name>defaultHtmlEscape</param-name>
    <param-value>true</param-value>
</context-param>

 <!-- Creates the Spring Container shared by all Servlets and Filters -->
<listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<listener>
    <listener-class>org.springframework.security.web.session.HttpSessionEventPublisher</listener-class>
</listener>

<!-- Processes application requests -->
<servlet>
    <servlet-name>springTest</servlet-name>
    <servlet-class>org.springframework.web.servlet.dispatcherServlet</servlet-class>
    <init-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>/WEB-INF/spring/servlet-context.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
</servlet>

<servlet-mapping>
    <servlet-name>springTest</servlet-name>
    <url-pattern>/</url-pattern>
</servlet-mapping>

<filter>
    <filter-name>springSecurityFilterChain</filter-name>
    <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
</filter>

<filter-mapping>
    <filter-name>springSecurityFilterChain</filter-name>
    <url-pattern>/*</url-pattern>
</filter-mapping>

<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:c="http://www.springframework.org/schema/c" xmlns:context="http://www.springframework.org/schema/context"
xmlns:p="http://www.springframework.org/schema/p" xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:util="http://www.springframework.org/schema/util"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
    http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.1.xsd
    http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd
    http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.1.xsd
    http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.1.xsd">


<context:annotation-config />

<context:component-scan base-package="com.myTest.db.entities"/>
<context:component-scan base-package="com.myTest.services"/>
<context:component-scan base-package="com.myTest.web"/>

<import resource="mvc-config.xml" />

security-config.xml

<beans:beans xmlns="http://www.springframework.org/schema/security" xmlns:beans="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
                    http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security-3.1.xsd">

<!-- Additional filter chain for normal users,matching all other requests -->
<http pattern="/resources/**" security="none" />

<http use-expressions="true">
    <intercept-url pattern="/login" access='isAnonymous()' requires-channel='http' />
    <intercept-url pattern="/" access='permitAll' requires-channel='http'/>
    <intercept-url pattern='/**' access='isAuthenticated()' requires-channel='http'/>
    <form-login login-page="/login" authentication-failure-url="/login" default-target-url="/welcome" />
    <access-denied-handler ref="accessDeniedHandler" />
    <logout logout-url="/logout" logout-success-url="/" />
</http>

<beans:bean id="accessDeniedHandler"https://www.jb51.cc/tag/ecurity/" target="_blank">ecurity.web.access.AccessDeniedHandlerImpl">
    <beans:property name="errorPage" value="/WEB-INF/pages/error.jsp"/>
</beans:bean>

 <authentication-manager>
    <authentication-provider user-service-ref="userAuthenticationService">
        <password-encoder hash="sha-256">
            <salt-source user-property="salt" />
        </password-encoder>
    </authentication-provider>
</authentication-manager>

<!-- User Detail Services -->
<beans:bean id="userAuthenticationService"https://www.jb51.cc/tag/ecurity/" target="_blank">ecurity.AuthenticationServiceImpl" />

解决方法

<param-value>/WEB-INF/spring/security-config.xml</param-value>

<param-value>/WEB-INF/spring/root-context.xml</param-value>

<filter>
        <filter-name>springSecurityFilterChain</filter-name>
        <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
        <init-param>
            <param-name>targetFilterLifecycle</param-name>
            <!-- 默认是false -->
            <param-value>true</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>springSecurityFilterChain</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

     @Override
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain filterChain)
            throws ServletException, IOException {

        // Lazily initialize the delegate if necessary.
        Filter delegateToUse = this.delegate;
        if (delegateToUse == null) {
            synchronized (this.delegateMonitor) {
                delegateToUse = this.delegate;
                if (delegateToUse == null) {
                    WebApplicationContext wac = findWebApplicationContext();
                    if (wac == null) {
                        throw new IllegalStateException("No WebApplicationContext found: " +
                                "no ContextLoaderListener or DispatcherServlet registered?");
                    }
                    delegateToUse = initDelegate(wac);
                }
                this.delegate = delegateToUse;
            }
        }

        // Let the delegate perform the actual doFilter operation.
        invokeDelegate(delegateToUse, request, response, filterChain);
    }

public abstract class GenericFilterBean implements Filter, BeanNameAware, EnvironmentAware,
        EnvironmentCapable, ServletContextAware, InitializingBean, DisposableBean {
    // ...

    @Override
    public void afterPropertiesSet() throws ServletException {
        initFilterBean();
    }

    // ...

    protected void initFilterBean() throws ServletException {
    }

    // ...
}

public class DelegatingFilterProxy extends GenericFilterBean {
    // ...

    @Nullable
    private volatile Filter delegate;

    // ...

    @Override
    protected void initFilterBean() throws ServletException {
        synchronized (this.delegateMonitor) {
            if (this.delegate == null) {
                // If no target bean name specified, use filter name.
                if (this.targetBeanName == null) {
                    this.targetBeanName = getFilterName();
                }
                // Fetch Spring root application context and initialize the delegate early,
                // if possible. If the root application context will be started after this
                // filter proxy, we''ll have to resort to lazy initialization.
                WebApplicationContext wac = findWebApplicationContext();
                if (wac != null) {
                    this.delegate = initDelegate(wac);
                }
            }
        }
    }

    // ...

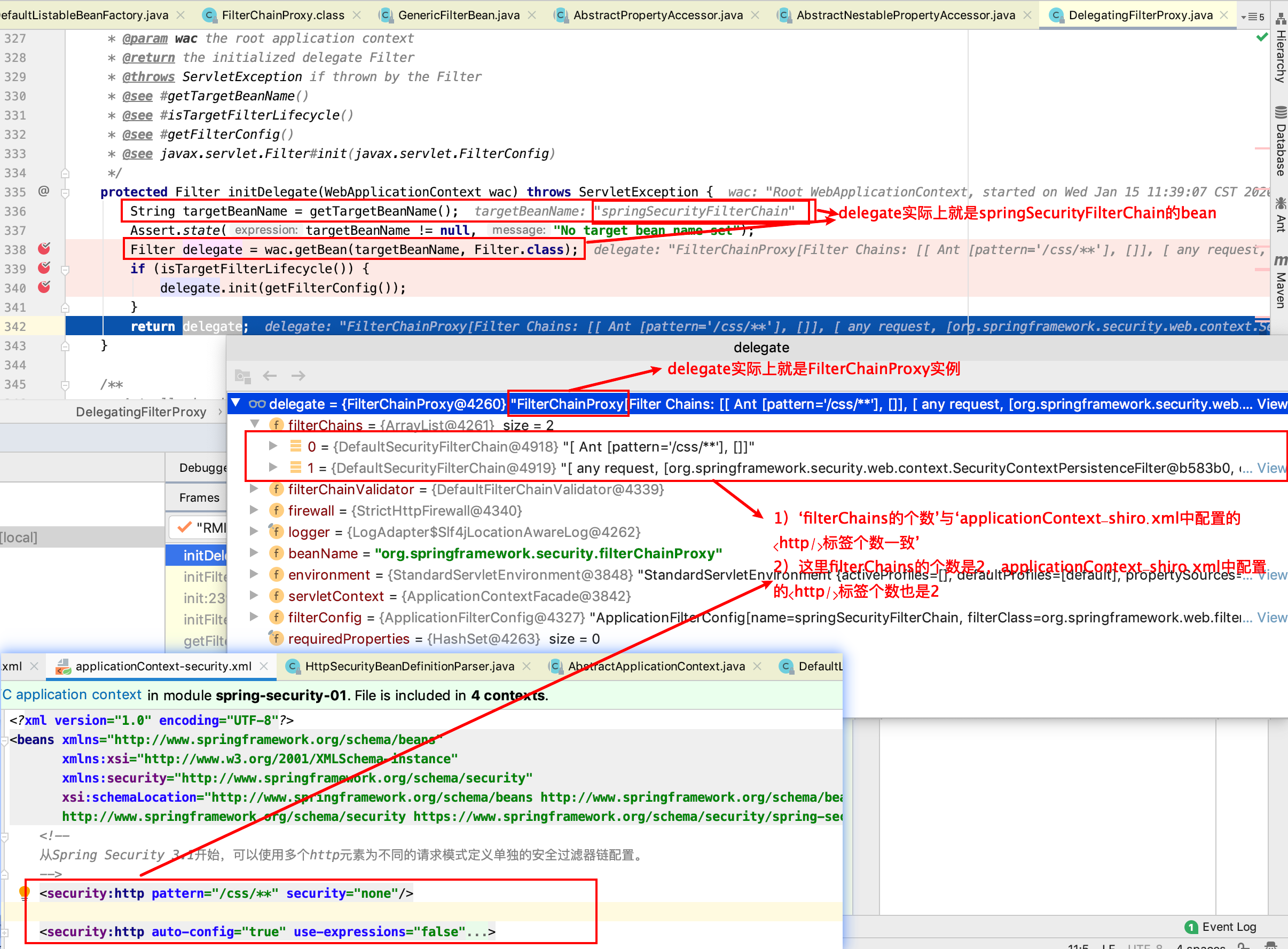

    protected Filter initDelegate(WebApplicationContext wac) throws ServletException {
        String targetBeanName = getTargetBeanName();
        Assert.state(targetBeanName != null, "No target bean name set");
        Filter delegate = wac.getBean(targetBeanName, Filter.class);
        if (isTargetFilterLifecycle()) {
            delegate.init(getFilterConfig());
        }
        return delegate;
    }

    // ...
}

protected void invokeDelegate(
            Filter delegate, ServletRequest request, ServletResponse response, FilterChain filterChain)
            throws ServletException, IOException {

        delegate.doFilter(request, response, filterChain);
    }

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:security="http://www.springframework.org/schema/security"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/security https://www.springframework.org/schema/security/spring-security.xsd">
    <!--
    从Spring Security 3.1开始，可以使用多个http元素为不同的请求模式定义单独的安全过滤器链配置。
    -->
    <security:http pattern="/css/**" security="none"/>

    <security:http auto-config="true" use-expressions="false">
        <security:csrf disabled="false"/>
        <security:intercept-url pattern="/" access="IS_AUTHENTICATED_ANONYMOUSLY"/>
        <security:intercept-url pattern="/index" access="IS_AUTHENTICATED_ANONYMOUSLY"/>
        <security:intercept-url pattern="/**" access="ROLE_USER"/>

        <security:form-login default-target-url="/index" />
        <security:logout delete-cookies="JSESSIONID" logout-success-url="/login" logout-url="/logout" />

    </security:http>

    <security:authentication-manager>
        <security:authentication-provider>
            <security:user-service>
                <!-- Password is prefixed with {noop} to indicate to DelegatingPasswordEncoder that
                NoOpPasswordEncoder should be used. This is not safe for production, but makes reading
                in samples easier. Normally passwords should be hashed using BCrypt
                -->
                <security:user name="admin" password="{noop}adminpwd" authorities="ROLE_USER, ROLE_ADMIN"/>
                <security:user name="user" password="{noop}userpwd" authorities="ROLE_USER"/>
            </security:user-service>
        </security:authentication-provider>
    </security:authentication-manager>

</beans>

http\://www.springframework.org/schema/security=org.springframework.security.config.SecurityNamespaceHandler

public interface NamespaceHandler {
    void init();

    @Nullable
    BeanDefinition parse(Element element, ParserContext parserContext);

    @Nullable
    BeanDefinitionHolder decorate(Node source, BeanDefinitionHolder definition, ParserContext parserContext);
}

public void init() {
        loadParsers();
    }

    private void loadParsers() {
        // Parsers
        parsers.put(Elements.LDAP_PROVIDER, new LdapProviderBeanDefinitionParser());
        parsers.put(Elements.LDAP_SERVER, new LdapServerBeanDefinitionParser());
        parsers.put(Elements.LDAP_USER_SERVICE, new LdapUserServiceBeanDefinitionParser());
        parsers.put(Elements.USER_SERVICE, new UserServiceBeanDefinitionParser());
        parsers.put(Elements.JDBC_USER_SERVICE, new JdbcUserServiceBeanDefinitionParser());
        parsers.put(Elements.AUTHENTICATION_PROVIDER, new AuthenticationProviderBeanDefinitionParser());
        parsers.put(Elements.GLOBAL_METHOD_SECURITY, new GlobalMethodSecurityBeanDefinitionParser());
        parsers.put(Elements.AUTHENTICATION_MANAGER, new AuthenticationManagerBeanDefinitionParser());
        parsers.put(Elements.METHOD_SECURITY_METADATA_SOURCE, new MethodSecurityMetadataSourceBeanDefinitionParser());

        // Only load the web-namespace parsers if the web classes are available
        if (ClassUtils.isPresent(FILTER_CHAIN_PROXY_CLASSNAME, getClass().getClassLoader())) {
            parsers.put(Elements.DEBUG, new DebugBeanDefinitionParser());
            parsers.put(Elements.HTTP, new HttpSecurityBeanDefinitionParser());
            parsers.put(Elements.HTTP_FIREWALL, new HttpFirewallBeanDefinitionParser());
            parsers.put(Elements.FILTER_SECURITY_METADATA_SOURCE, new FilterInvocationSecurityMetadataSourceParser());
            parsers.put(Elements.FILTER_CHAIN, new FilterChainBeanDefinitionParser());
            filterChainMapBDD = new FilterChainMapBeanDefinitionDecorator();
        }

        if (ClassUtils.isPresent(MESSAGE_CLASSNAME, getClass().getClassLoader())) {
            parsers.put(Elements.WEBSOCKET_MESSAGE_BROKER, new WebSocketMessageBrokerSecurityBeanDefinitionParser());
        }
    }

    @Override
    public BeanDefinition parse(Element element, ParserContext pc) {
        CompositeComponentDefinition compositeDef = new CompositeComponentDefinition(
                element.getTagName(), pc.extractSource(element));
        pc.pushContainingComponent(compositeDef);

        registerFilterChainProxyIfNecessary(pc, pc.extractSource(element));

        // Obtain the filter chains and add the new chain to it
        // 这里FILTER_CHAINS字符串为：org.springframework.security.filterChains
        BeanDefinition listFactoryBean = pc.getRegistry().getBeanDefinition(BeanIds.FILTER_CHAINS);
        // 其中sourceList是从spring-security.xsd 文件中读取的：
        List<BeanReference> filterChains = (List<BeanReference>) listFactoryBean.getPropertyValues().getPropertyValue("sourceList").getValue();

        filterChains.add(createFilterChain(element, pc));

        pc.popAndRegisterContainingComponent();
        return null;
    }

static void registerFilterChainProxyIfNecessary(ParserContext pc, Object source) {
        if (pc.getRegistry().containsBeanDefinition(BeanIds.FILTER_CHAIN_PROXY)) {
            return;
        }
        // Not already registered, so register the list of filter chains and the
        // FilterChainProxy
        BeanDefinition listFactoryBean = new RootBeanDefinition(ListFactoryBean.class);
        listFactoryBean.getPropertyValues().add("sourceList", new ManagedList());
        pc.registerBeanComponent(new BeanComponentDefinition(listFactoryBean, BeanIds.FILTER_CHAINS));

        BeanDefinitionBuilder fcpBldr = BeanDefinitionBuilder.rootBeanDefinition(FilterChainProxy.class);
        fcpBldr.getRawBeanDefinition().setSource(source);
        fcpBldr.addConstructorArgReference(BeanIds.FILTER_CHAINS);
        fcpBldr.addPropertyValue("filterChainValidator", new RootBeanDefinition(DefaultFilterChainValidator.class));
        BeanDefinition fcpBean = fcpBldr.getBeanDefinition();
        pc.registerBeanComponent(new BeanComponentDefinition(fcpBean, BeanIds.FILTER_CHAIN_PROXY));
        pc.getRegistry().registerAlias(BeanIds.FILTER_CHAIN_PROXY, BeanIds.SPRING_SECURITY_FILTER_CHAIN);
    }

/**
     * Creates the {@code SecurityFilterChain} bean from an <http> element.
     */
    private BeanReference createFilterChain(Element element, ParserContext pc) {
        boolean secured = !OPT_SECURITY_NONE.equals(element.getAttribute(ATT_SECURED));

        if (!secured) {
            if (!StringUtils.hasText(element.getAttribute(ATT_PATH_PATTERN))
                    && !StringUtils.hasText(ATT_REQUEST_MATCHER_REF)) {
                pc.getReaderContext().error(
                        "The ''" + ATT_SECURED
                                + "'' attribute must be used in combination with"
                                + " the ''" + ATT_PATH_PATTERN + "'' or ''"
                                + ATT_REQUEST_MATCHER_REF + "'' attributes.",
                        pc.extractSource(element));
            }

            for (int n = 0; n < element.getChildNodes().getLength(); n++) {
                if (element.getChildNodes().item(n) instanceof Element) {
                    pc.getReaderContext().error(
                            "If you are using <http> to define an unsecured pattern, "
                                    + "it cannot contain child elements.",
                            pc.extractSource(element));
                }
            }

            return createSecurityFilterChainBean(element, pc, Collections.emptyList());
        }

        final BeanReference portMapper = createPortMapper(element, pc);
        final BeanReference portResolver = createPortResolver(portMapper, pc);

        ManagedList<BeanReference> authenticationProviders = new ManagedList<>();
        BeanReference authenticationManager = createAuthenticationManager(element, pc,
                authenticationProviders);

        boolean forceAutoConfig = isDefaultHttpConfig(element);
        HttpConfigurationBuilder httpBldr = new HttpConfigurationBuilder(element,
                forceAutoConfig, pc, portMapper, portResolver, authenticationManager);

        AuthenticationConfigBuilder authBldr = new AuthenticationConfigBuilder(element,
                forceAutoConfig, pc, httpBldr.getSessionCreationPolicy(),
                httpBldr.getRequestCache(), authenticationManager,
                httpBldr.getSessionStrategy(), portMapper, portResolver,
                httpBldr.getCsrfLogoutHandler());

        httpBldr.setLogoutHandlers(authBldr.getLogoutHandlers());
        httpBldr.setEntryPoint(authBldr.getEntryPointBean());
        httpBldr.setAccessDeniedHandler(authBldr.getAccessDeniedHandlerBean());

        authenticationProviders.addAll(authBldr.getProviders());

        List<OrderDecorator> unorderedFilterChain = new ArrayList<>();

        unorderedFilterChain.addAll(httpBldr.getFilters());
        unorderedFilterChain.addAll(authBldr.getFilters());
        unorderedFilterChain.addAll(buildCustomFilterList(element, pc));

        unorderedFilterChain.sort(new OrderComparator());
        checkFilterChainOrder(unorderedFilterChain, pc, pc.extractSource(element));

        // The list of filter beans
        List<BeanMetadataElement> filterChain = new ManagedList<>();

        for (OrderDecorator od : unorderedFilterChain) {
            filterChain.add(od.bean);
        }

        return createSecurityFilterChainBean(element, pc, filterChain);
    }

        createAnonymousFilter();
        createRememberMeFilter(authenticationManager);
        createBasicFilter(authenticationManager);
        createFormLoginFilter(sessionStrategy, authenticationManager);
        createOpenIDLoginFilter(sessionStrategy, authenticationManager);
        createX509Filter(authenticationManager);
        createJeeFilter(authenticationManager);
        createLogoutFilter();
        createLoginPageFilterIfNeeded();
        createUserDetailsServiceFactory();
        createExceptionTranslationFilter();

        createCsrfFilter();
        createSecurityContextPersistenceFilter();
        createSessionManagementFilters();
        createWebAsyncManagerFilter();
        createRequestCacheFilter();
        createServletApiFilter(authenticationManager);
        createJaasApiFilter();
        createChannelProcessingFilter();
        createFilterSecurityInterceptor(authenticationManager);
        createAddHeadersFilter();
        createCorsFilter();

loginController
indexController
org.springframework.context.annotation.internalConfigurationAnnotationProcessor // 处理 @Configuration 注解
org.springframework.context.annotation.internalAutowiredAnnotationProcessor // 处理 @Autowired、@Value、@Inject 注解
org.springframework.context.annotation.internalCommonAnnotationProcessor // 处理 @PostConstruct、@PreDestroy、@Resource、@WebServiceRef
org.springframework.context.event.internalEventListenerProcessor    // 处理 @EventListener 注解
org.springframework.context.event.internalEventListenerFactory
multipartResolver // 定义的文件上传解析器 bean

org.springframework.context.annotation.internalConfigurationAnnotationProcessor 对应的类 org.springframework.context.annotation.ConfigurationClassPostProcessor
org.springframework.context.annotation.internalAutowiredAnnotationProcessor 对应的类 org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor
org.springframework.context.annotation.internalCommonAnnotationProcessor 对应的类 org.springframework.context.annotation.CommonAnnotationBeanPostProcessor
org.springframework.context.annotation.internalPersistenceAnnotationProcessor 对应的类 org.springframework.orm.jpa.support.PersistenceAnnotationBeanPostProcessor
org.springframework.context.event.internalEventListenerProcessor 对应的类 org.springframework.context.event.EventListenerMethodProcessor
org.springframework.context.event.internalEventListenerFactory 对应的类 org.springframework.context.event.DefaultEventListenerFactory

8 = "org.springframework.security.filterChains"
9 = "org.springframework.security.filterChainProxy"
10 = "org.springframework.security.web.DefaultSecurityFilterChain#0"
11 = "org.springframework.security.web.PortMapperImpl#0"
12 = "org.springframework.security.web.PortResolverImpl#0"
13 = "org.springframework.security.config.authentication.AuthenticationManagerFactoryBean#0"
14 = "org.springframework.security.authentication.ProviderManager#0"
15 = "requestDataValueProcessor"
16 = "org.springframework.security.web.csrf.LazyCsrfTokenRepository#0"
17 = "org.springframework.security.web.context.HttpSessionSecurityContextRepository#0"
18 = "org.springframework.security.core.session.SessionRegistryImpl#0"
19 = "org.springframework.security.web.authentication.session.CompositeSessionAuthenticationStrategy#0"
20 = "org.springframework.security.web.savedrequest.HttpSessionRequestCache#0"
21 = "org.springframework.security.config.http.HttpConfigurationBuilder$SecurityContextHolderAwareRequestFilterBeanFactory#0"
22 = "org.springframework.security.config.http.HttpConfigurationBuilder$RoleVoterBeanFactory#0"
23 = "org.springframework.security.access.vote.AffirmativeBased#0"
24 = "org.springframework.security.web.access.intercept.FilterSecurityInterceptor#0"
25 = "org.springframework.security.web.access.DefaultWebInvocationPrivilegeEvaluator#0"
26 = "org.springframework.security.authentication.AnonymousAuthenticationProvider#0"
27 = "org.springframework.security.web.authentication.www.BasicAuthenticationEntryPoint#0"
28 = "org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter#0"
29 = "org.springframework.security.userDetailsServiceFactory"
30 = "org.springframework.security.web.DefaultSecurityFilterChain#1"
31 = "bCryptPasswordEncoder"
32 = "org.springframework.security.provisioning.InMemoryUserDetailsManager#0"
33 = "org.springframework.security.authentication.dao.DaoAuthenticationProvider#0"
34 = "org.springframework.security.authentication.DefaultAuthenticationEventPublisher#0"
35 = "org.springframework.security.authenticationManager"
